How to Fix Xbox One S HDMI Connected but “No signal” Error
In this article, we'll explain how to fix Xbox One S console HDMI Connected but “No signal” error and Black Screen of Death.
Author:Daniel BarrettJan 16, 202393.3K Shares1.7M Views
How to Fix XboxOne S HDMI Connected but not Working– Are you experiencing a “No signal” error on your Xbox console? Don’t panic; you’re not alone.
For quite some time now, Xbox users have reported that suddenly no display on the TV or Monitor with a “No signal” error message even when the console is fully booted up.
The Xbox system relies heavily on an HDMI connection to run correctly. So, if you’re also experiencing this issue, this guide will help you.
This article will explain how to fix Xbox console HDMI Connected but “No signal” error and Black Screen of Death.
Instruction in this guide applies to Xbox One, Xbox One S, and Xbox One X.
How to Fix Your Xbox One HDMI Issues
Below is a comprehensive list of the best solutions you can try to fix the HDMI Connected but “No signal” error and Black Screen of Death on your Xbox One console.

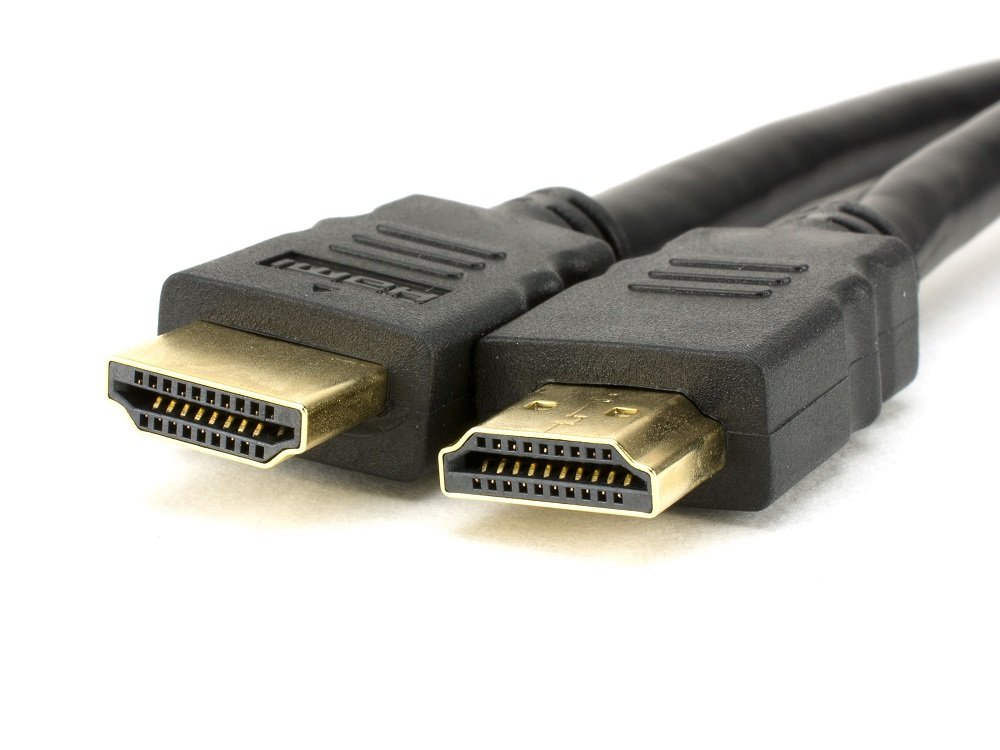

Check Your HDMI Connection
Often, the simplest solution is the most effective. The first thing you should do is to check the connection. Check your HDMI cord and make sure it is firmly plugged into both the Xbox and TV.
If the HDMI cord is shaky, unplug it from both ports and plug it back in. Also, check if the cable is in good condition. If it’s not, consider getting a new HDMI cord.

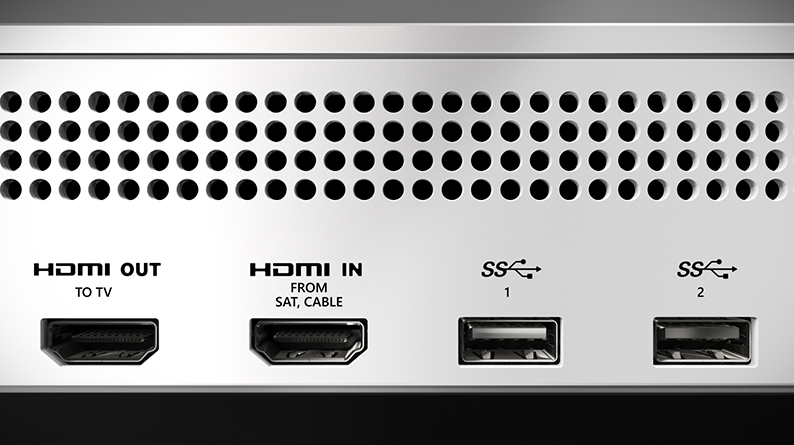

Connect using HDMI Out To TV Port
If you’ve been trying to connect through HDMI In, this might be the reason behind the issue. Make sure to plug the HDMI cord into the HDMI Out To TV port on the back of the Xbox.
Now, check both ends of the HDMI cable and firmly make sure it is plugged in. Also, make sure that the TV is set to HDMI.
Check AVR Connection to Fix Xbox One S HDMI Connected but “No signal” Error
Your AVR, which controls your device’s audio and video reception, might need checking. Check your AVR to ensure that all your audio and video are working correctly.
You can unplug everything and plug it back in like you did with your HDMI cord.
Turn on Low-Resolution Mode
Your Xbox One has a low-resolution setting that can help games and the system itself run better and fix current issues.
Here’s how:
- Eject any Disc inside the Xbox.
- Hold the Power button for five to ten seconds and wait until the console is completely off.
- Once the console has completely turned off, hold the Power and Eject buttons simultaneously until you hear two beeps, which will take about twenty seconds intervals. Do not let go until you hear the second beep.
- After doing this, your console should be running in low resolution.
To change the display to the highest resolution that the TV supports, press the Xbox button on the controller and navigate to the System > Settings > Display & Sound > Video output. You can change the Display resolution to the maximum Output accepted by the TV/monitor.
Power Cycle Your Xbox One to Fix Xbox One S HDMI Connected but “No signal” Error
You can attempt to solve the problem of your Xbox One HDMI not working by power cycling your console.
Here’s how:
- Press and hold on the Xbox button on the console until the front LED stops flashing.
- After the Xbox is turned off completely, disconnect the power cable from the power outlet, wait for a full minute before attempting to plug it back in and turn it on.
- Start the Xbox console once again by pressing the Xbox button.
- If the Xbox initial animation screen displays on TV, confirm that the cool boot is completed.
Turn Off HDCP to Fix Xbox One S HDMI Connected but “No signal” Error
If you are getting HDCP issues with an HDMI splitter or you are using a capture card such as ELGATO or AVERMEDIA, turn on the Xbox’s Energy-saving mode to turn off HDCP.
Turn Off 24Hz on Your Console
Your Xbox One might have 24Hz enabled, which could be causing problems with your connection to your TV. To turn off this setting, follow the steps below:
- Press the Xbox button to go to the Home screen > scroll left to open the Guide.
- Select Settings > select All settings.
- Go to Display & sound > select Video options.
- Click Enable 24Hz to turn off this setting.
